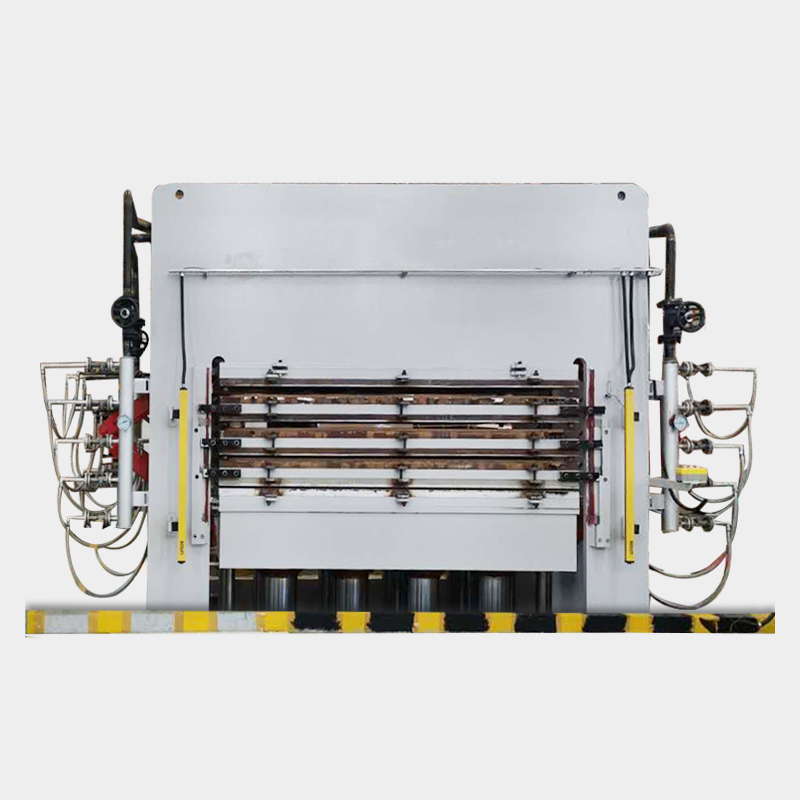

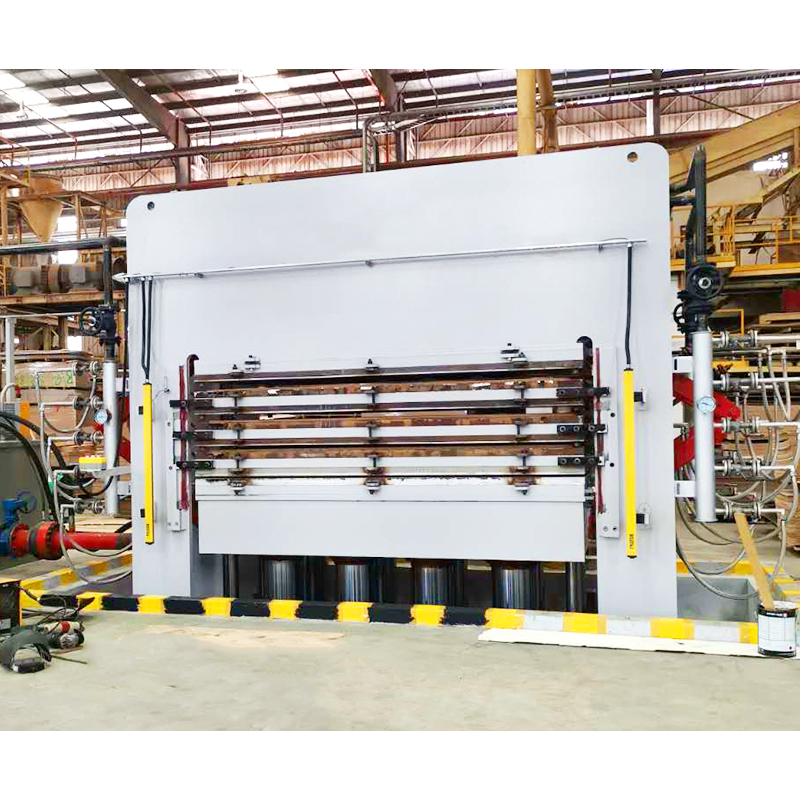

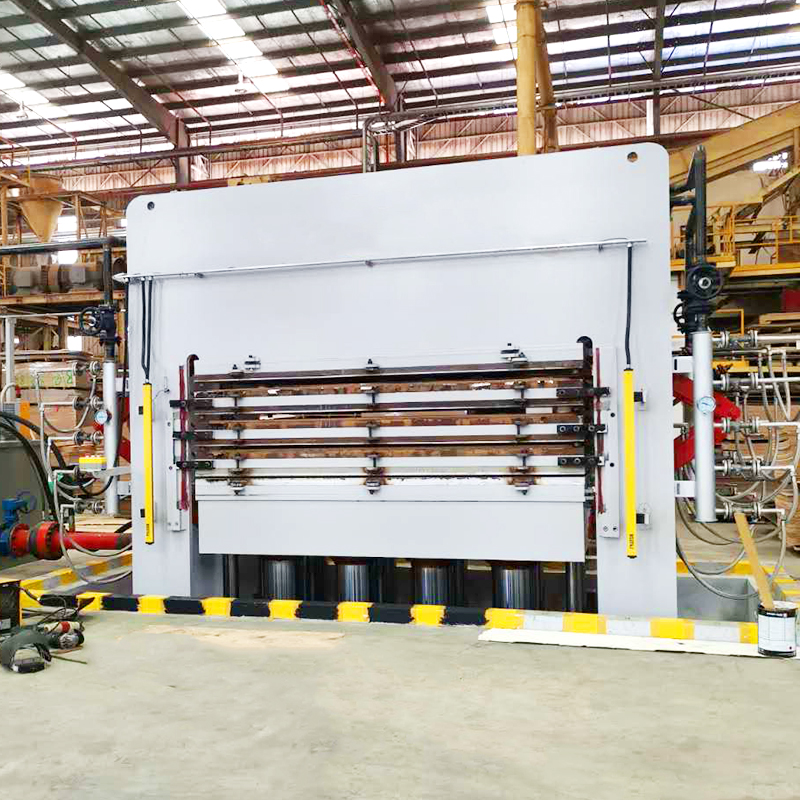

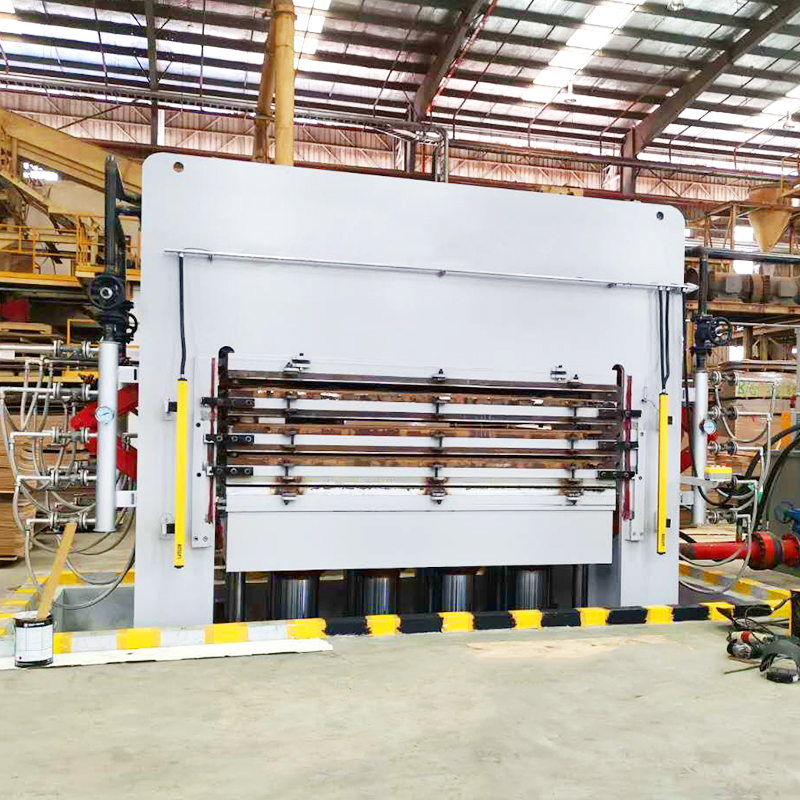

MDF Mould Door Skin Hot Press Machine

Product Introduction

Place of Origin	Shandong, China
Condition	New
Type	Hot Press Machine
Weight (kG)	45000 kg
Applicable Industries	woodworking
Warranty	One year
Key Selling Points	Energy saving
Usage	to produce door skin
Brand Name	Shengyang
Voltage	380v, or as your requirement
Dimension(LWH)	according to your demand
Power (kW)	37kw
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, PLC, Engine
After-sales Service Provided	Engineers available to service machinery overseas
Working methods	PLC
Layers	Multi-layer
Color	Green or your requirements
Cylinder	Made in Wuxi
Electric parts	Schneidar
Hydraulic valve	Taiwan Delta
Application	Melamine paper or natrual veneer laminated on wooded door skin
Machinery Test Report	Provided
Certification	Is0 9001-2000,CE

Introduction of MDF door skin

MDF door skin can be used to make beautiful doors which can be combined with honeycomb paper.The door skin can be designed with different patterns all depends on the molds.

Advantage of door skin

1.low cost make big profit

2.energy consumption saving

3.few labor cost

4.big demands for MDF door skin

All elements can be the reason you choose to produce MDF door skin.

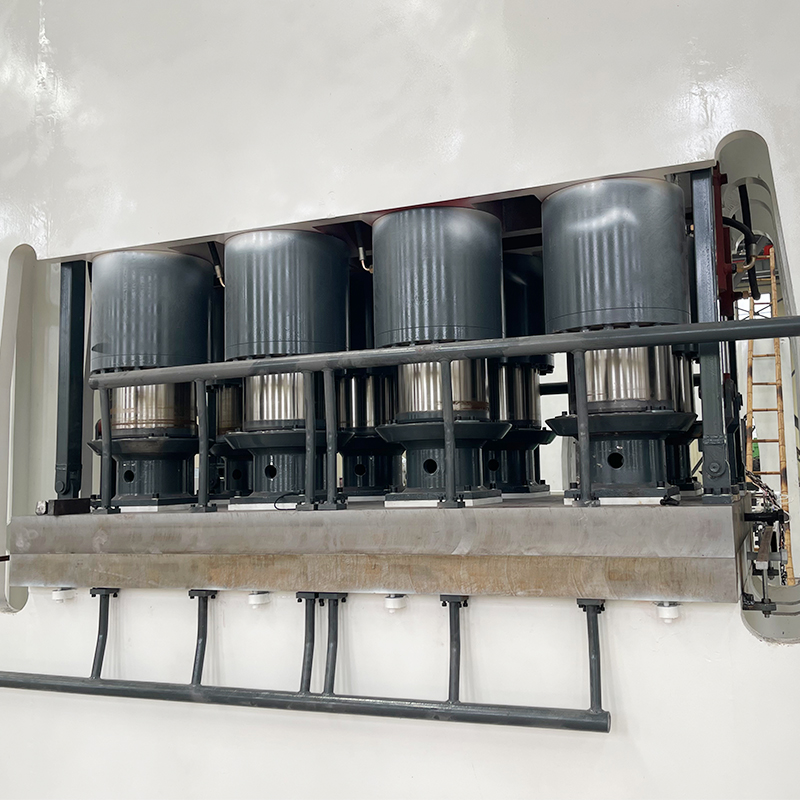

Type		Finished Board Size(ft)	Nominal Pressure(KN)	Hot platen size(mm)	Layer Spacing(mm)	Main Oilcylinder(diameterxnumber)
NYJ-800T	3 layers	3x7	8000	1150x2250x70	250	φ440x920x4
	4 layers	3x7	8000	1150x2250x60	250	Φ250x1000x8
	5 layers	3x7	8000	1150x2250x60	250	Φ280x1250x6
NYJ-1200T	3 layers	3x7	12000	1150x2250x70	300	Φ320x920x6
		4x8		1150x2250x70
	4 layers	3x7	12000	1150x2250x60	250	Φ320x1000x6
		4x8		1150x2250x60
	5 layers	3x7	12000	1150x2250x60	250	Φ280x1250x8
		4x8		1150x2250x60
NYJ-1400T	3 layers	3x7	14000	1150x2250x70	300	Φ340x920x6
		4x8		1150x2250x70
	4 layers	3x7	14000	1150x2250x60	250	Φ340x1000x6
		4x8		1150x2250x60
	5 layers	3x7	14000	1150x2250x60	250	Φ440x1250x6
		4x8		1150x2250x60
NYJ-1600T	3 layers	4x8	16000	1150x2250x70	250	Φ380x920x6
	4 layers	4x8	16000	1150x2250x60	250	Φ380x1000x6
	5 layers	4x8	16000	1150x2250x60	250	Φ380x1250x6

FAQ:

1. Can you customize products for clients?

Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.

2. How can we trust your factory?

We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.

3.Why does the price often change?

The price depends on the latest prices of the raw materials.

4. What about the contract signing?

If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

5. How about delivery?

when the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
