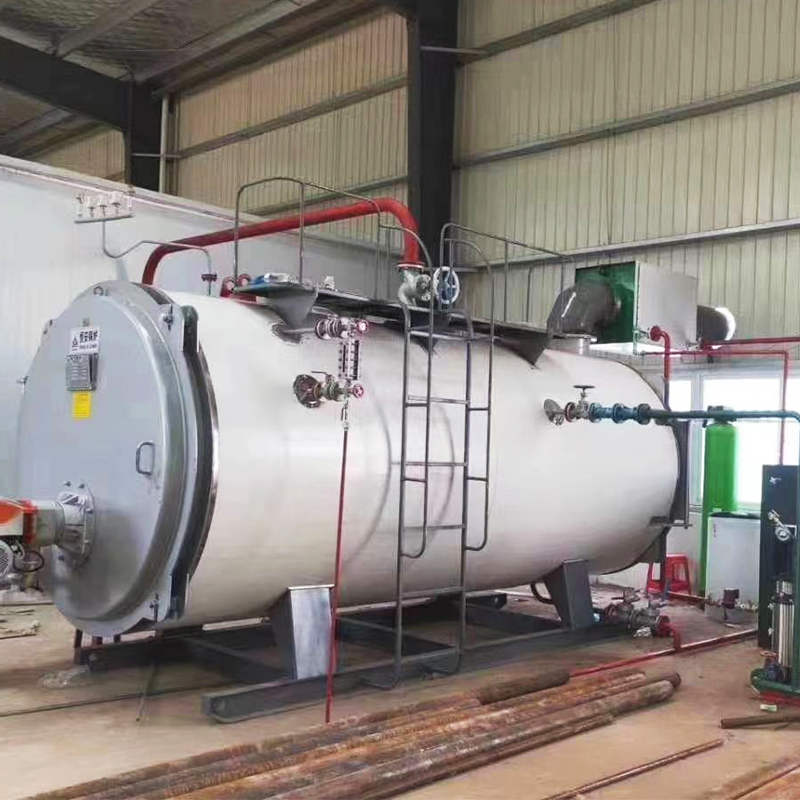

Natural Gas Boiler

Product Introduction

Applicable Industries	Manufacturing Plant
Showroom Location	Egypt, Brazil, Kenya, Algeria
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	1 Year
Core Components	motor
Steam Production	Max.30t/h
Place of Origin	Shandong,China
Warranty	1 Year
Key Selling Points	Long Service Life
Condition	New
Type	Natural Circulation
Usage	Power Station
Structure	Fire Tube
Pressure	High Pressure
Style	VERTICAL
Fuel	Coal-fired
Brand Name	Shengyang
Output	Steam
Dimension(LWH)	2000mm2000mm5000mm
Weight	10t
Product name	Boiler
Thermal efficiency	90%
Type	Natural Circulation
Pressure	High pressure
Style	Horizontal
Weight	15 Ton
Design pressure	1.0
Highest tem	350
Certification	IS090001-2000,CE
Marketing Type	New Product 2020

Product Overview

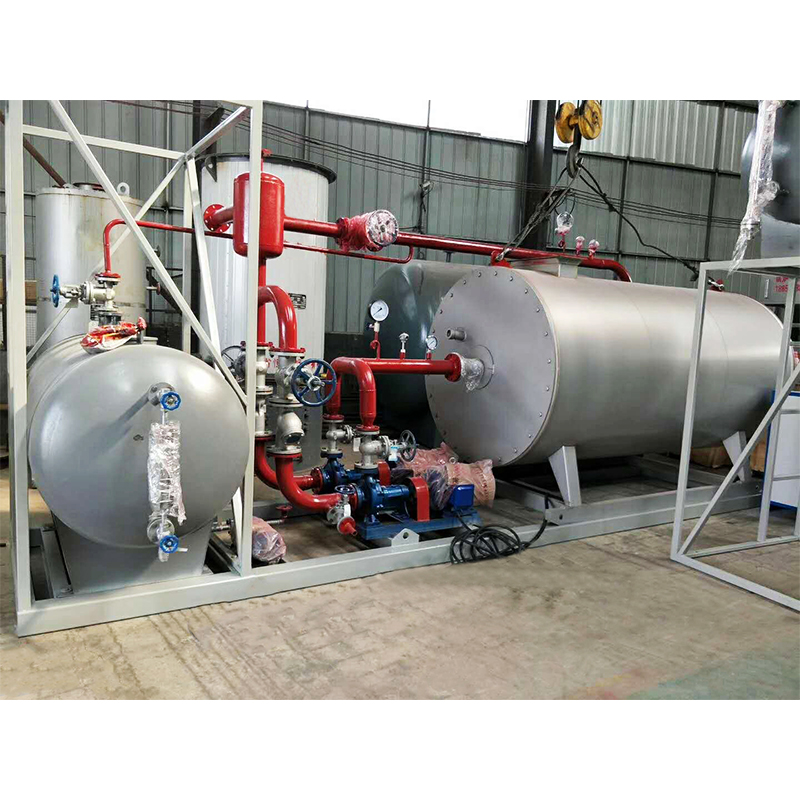

Boiler for plywood hot press machine

Boiler is equipmented with the whole plywood production line, particle board production line and the osb production line.

Feature:

1. High temperature in a low pressure

2. Stable heat system

3. Easily temperature control.

4. High heat efficient

5. Excellent operation control system

6. Safe monitor device

7. Less water, electricity, production cost

Technique data:

Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw (1200×104kcal/h).

Design pressure is equal to or greater than 1 Mpa.

Operating temperature is equal to or less than 350°C.

Thermal efficiency is between 60% and 85% according to the difference of boiler type.

Fuel：

Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust,coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.

Burning system

Coal-fired：

Fixed grate combustion, hydraulic jacking system, spiral jacking system, reciprocal

grate system, travelling grate system.

Oil-fired：

Mechanical atomization system, rotary cup atomization system, set cup atomization

system, steam atomization system, air atomization system.

Gas-fired：

Fuel gas filter, pressure switch, Gas pressure regulator, leak detection pump,solenoid valve
